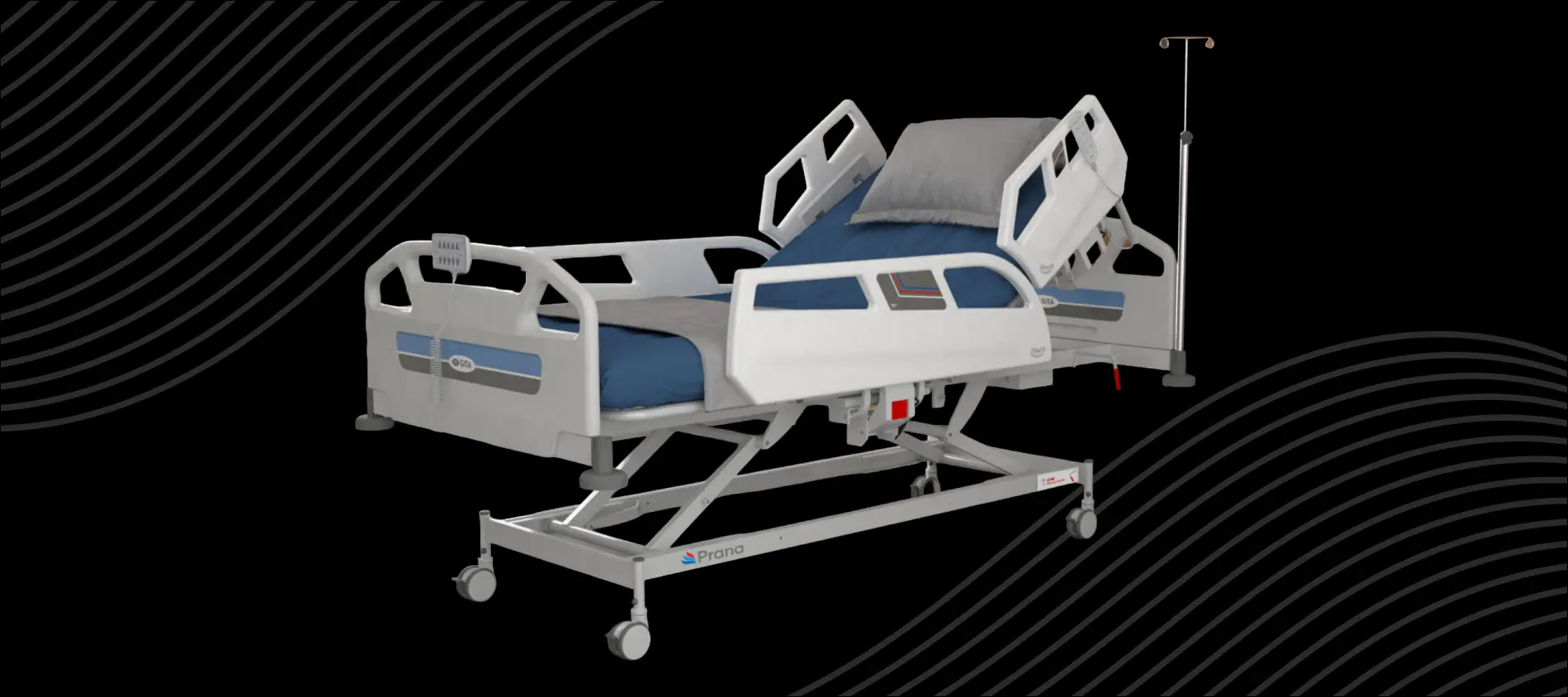

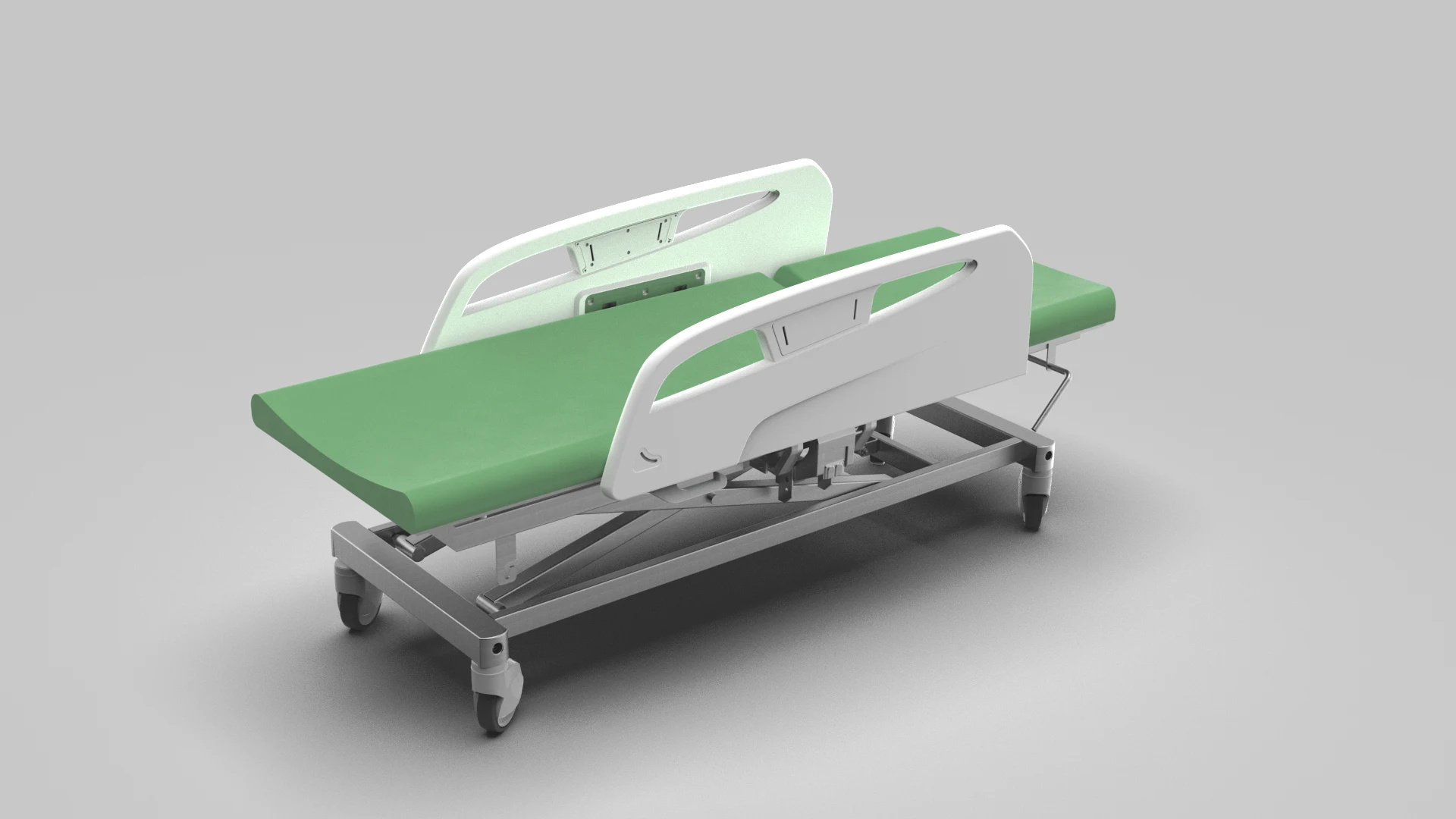

Objectives:

The objective is to design and develop an advanced motorized gynec bed that enhances patient comfort caregiver efficiency and operational convenience. The key features include:

• Integrated up-and-down motion for seamless height adjustments to accommodate various medical procedures and examinations.
• A backrest with recline angle of upto 45 degree ensuring patient support and comfort during examinations and treatment.
• A user friendly remote controlled system for effortless adjustment of the bed Positions.
• A strategically placed container to collect fluids ,such as bleeding,ensuring hygiene and ease of maintenance.
• Enhanced patient support through an ergonomically adjustable headrest foroptimized positioning.

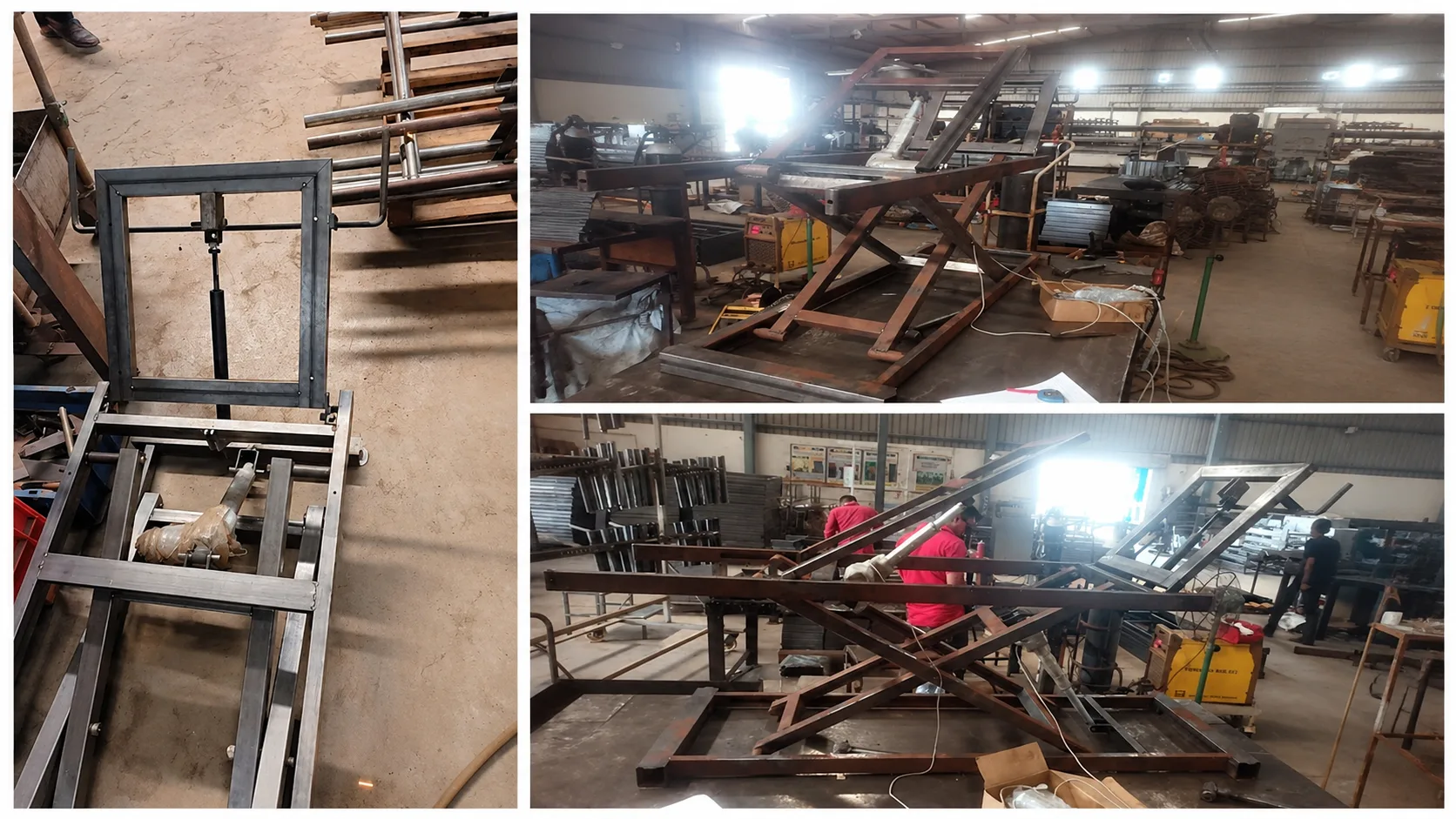

Challenges:

Designing a three-section adjustable medical bed with independent articulation for the headrest, backrest, and legrest introduces a complex set of mechanical, structural, and ergonomic challenges. Precise hydraulic actuator placement is essential to achieve smooth, synchronized motion while minimizing space usage and mechanical interference. The supporting bed frame must balance high structural integrity with modularity, enabling it to support dynamic loads, repeated movements, and varying patient weights without failure or deformation.

Ensuring stability across a wide range of motion demands careful control of the system’s center of gravity, especially during transitions where sections are angled or fully elevated. Any shift in weight distribution must be managed to prevent tipping, swaying, or undue stress on the actuators and joints.

In addition, the bed must support a wide range of height adjustments to accommodate diverse user needs — from standard patients to those with limited mobility or disabilities — while also maintaining caregiver ergonomics and compliance with safety standards. This includes incorporating smooth and reliable lift mechanisms, intuitive control systems, and fail-safe features such as overload protection, emergency lowering, and battery backup during power outages.

Ultimately, the design must integrate all these features into a compact, reliable, and user-friendly system, ready for real-world medical environments.

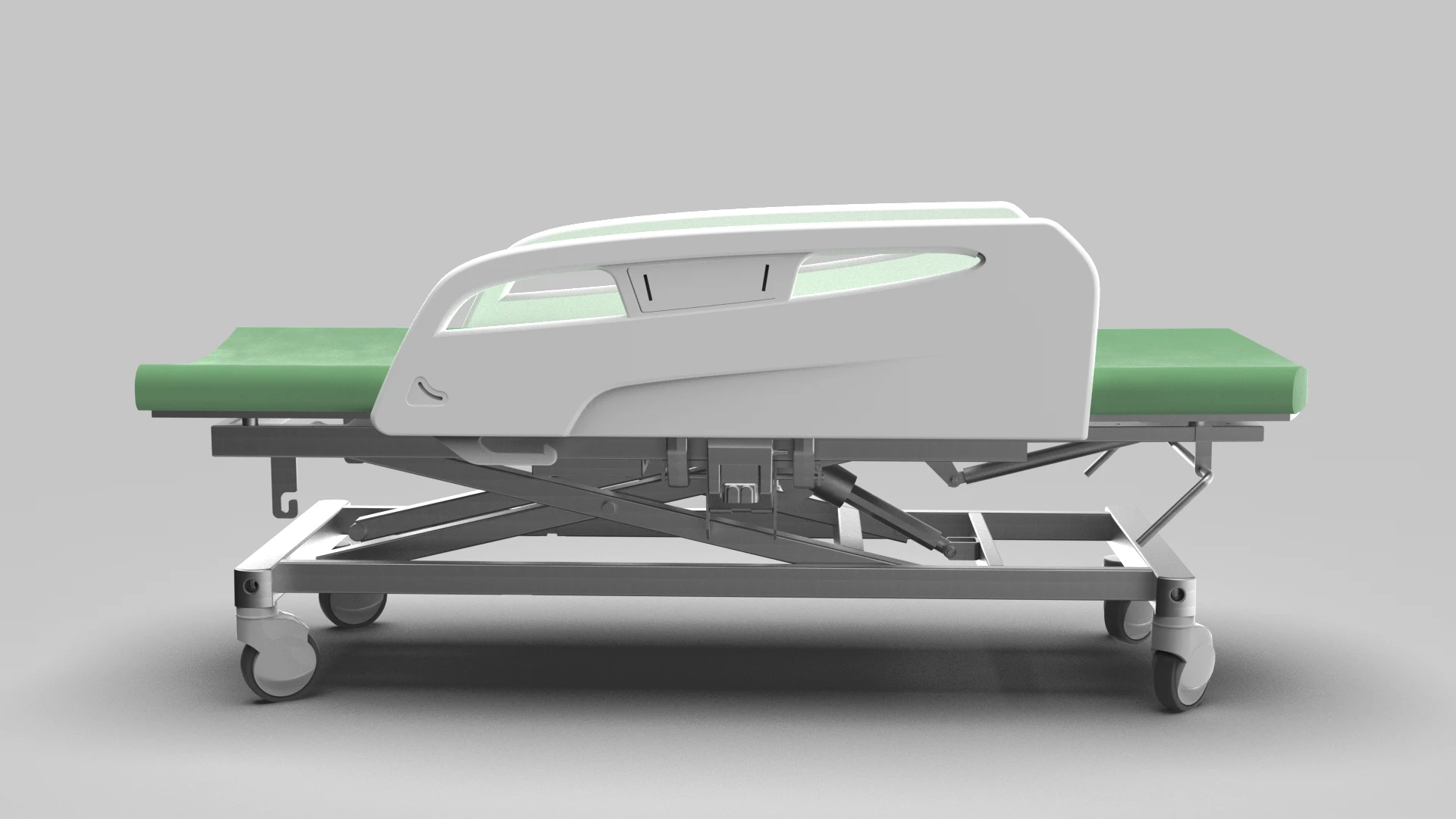

Solution:

To address the complex mechanical and ergonomic challenges involved in developing a three-section adjustable bed, we implemented a series of targeted design solutions focused on structural stability, smooth actuation, and user accessibility.

To accommodate the segmented configuration, the bed was designed to hold three separate mattresses, each aligned with the headrest, backrest, and legrest sections, ensuring user comfort and proper articulation during movement.

For structural support, a small central stud was integrated into the base frame, enhancing rigidity and minimizing flex during dynamic operation. A custom strip bracket was introduced to secure the backrest frame, allowing consistent pivoting and improved load transfer during actuation.

To ensure reliable motion of the backrest, a dedicated hydraulic actuator bracket was strategically placed to guide the actuator through its full range of motion without misalignment or binding. This placement was optimized for torque efficiency and structural balance.

One of the key challenges—achieving controlled upward movement of the headrest—was solved by integrating a gas spring mechanism. This enabled a 40 degree upward incline from the horizontal plane, providing ergonomic neck and head support while maintaining smooth and adjustable resistance.

In line with user and caregiver ergonomics, the bed frame was engineered to offer adjustable height functionality, ranging from a minimum of 500 mm to a maximum of 850 mm. This allows comfortable patient transfers for individuals with limited mobility, while also supporting caregivers in upright working positions.

Each component was designed to maintain the center of gravity within a stable zone throughout all motion sequences, preventing imbalance or tipping. Bracket reinforcements and actuator mounts were strategically distributed to minimize structural complexity while maintaining durability and long-term performance under clinical conditions.

These solutions collectively ensure the bed system meets both functional requirements and safety standards, while providing a user-friendly, modular platform adaptable for hospitals, assisted living, and home care environments.

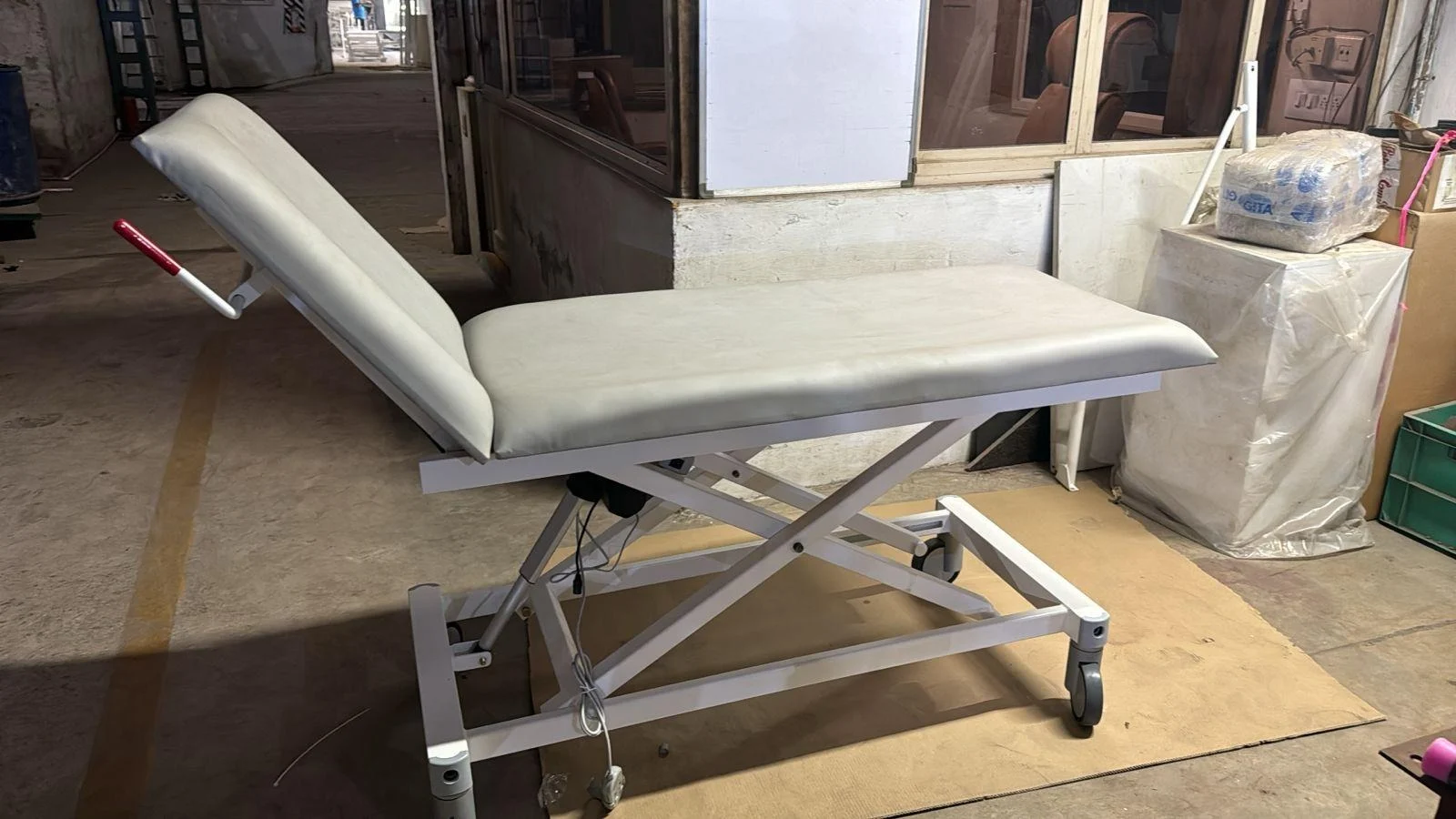

Outcome:

The successful development of the three-section hydraulically adjustable bed results in a robust, user-centric solution that enhances both patient comfort and caregiver efficiency. By integrating independent motion control for the headrest, backrest, and legrest, supported by precisely positioned hydraulic actuators and a gas spring mechanism, the bed allows smooth, reliable articulation tailored to individual needs.

The structure maintains high stability and durability while minimizing mechanical complexity, with carefully designed brackets and reinforcements that ensure optimal performance and safety. The adjustable height range of 500 mm to 850 mm accommodates users of varying mobility levels, including the elderly and disabled, while also supporting ergonomic working conditions for medical staff.

Overall, the outcome is a versatile, safe, and ergonomically designed adjustable bed platform suitable for hospitals, rehabilitation centers, and home care environments—meeting modern healthcare demands for comfort, accessibility, and operational reliability.
